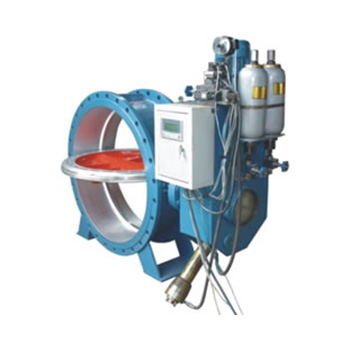

HD7X41X 型 PN6~PN16 蓄能器式液控缓闭止回蝶阀主要用在热电厂并联机组和煤气余热发电机组上，用以作为保护系统安全得紧急切断阀门。
| DN | PN | L | L1 | L2 | L3 | L4 | 法兰连接尺寸 |
| 400 | 0.6 | 216 | 556 | 1449 | 320 | 440 |
GB/T17241 GB/T9113 |
| 1.0 | 216 | 556 | 1449 | 330 | 440 | ||
| 1.6 | 216 | 556 | 1449 | 345 | 440 | ||
| 450 | 0.6 | 222 | 556 | 1449 | 370 | 440 | |
| 1.0 | 222 | 556 | 1449 | 380 | 440 | ||
| 1.6 | 222 | 580 | 1449 | 395 | 490 | ||
| 500 | 0.6 | 229 | 580 | 1449 | 400 | 440 | |
| 1.0 | 229 | 580 | 1449 | 410 | 490 | ||
| 1.6 | 229 | 580 | 1449 | 425 | 490 | ||
| 600 | 0.6 | 267 | 580 | 1449 | 440 | 490 | |
| 1.0 | 267 | 580 | 1449 | 460 | 490 | ||
| 1.6 | 267 | 625 | 1820 | 470 | 490 | ||
| 700 | 0.6 | 292 | 625 | 1449 | 436 | 490 | |
| 1.0 | 292 | 625 | 1820 | 550 | 545 | ||
| 1.6 | 292 | 625 | 1820 | 570 | 545 | ||
| 800 | 0.6 | 318 | 625 | 1820 | 625 | 490 | |
| 1.0 | 318 | 625 | 1820 | 640 | 545 | ||
| 1.6 | 318 | 625 | 1820 | 660 | 545 | ||
| 900 | 0.6 | 330 | 625 | 1820 | 700 | 545 | |
| 1.0 | 330 | 625 | 1820 | 710 | 545 | ||
| 1.6 | 330 | 675 | 1820 | 725 | 610 | ||
| 1000 | 0.6 | 410 | 625 | 1820 | 760 | 610 | |
| 1.0 | 410 | 675 | 1820 | 770 | 610 | ||
| 1.6 | 410 | 675 | 2180 | 790 | 610 | ||
| 1200 | 0.6 | 470 | 675 | 1820 | 875 | 610 | |
| 1.0 | 470 | 675 | 2180 | 890 | 610 | ||
| 1.6 | 470 | 729 | 2180 | 915 | 720 | ||
| 1400 | 0.6 | 530 | 729 | 2180 | 1000 | 720 | |
| 1.0 | 530 | 729 | 2180 | 1020 | 720 | ||
| 1.6 | 530 | 781 | 2180 | 1045 | 960 | ||
| 1600 | 0.6 | 600 | 781 | 2180 | 1120 | 720 | |
| 1.0 | 600 | 781 | 2180 | 1140 | 960 |
